The machine tool is a mechanical processing equipment integrating advanced technology of machine, electricity and liquid, mainly used for the processing of plane, surface and hole. Widely used in machinery manufacturing industry, a variety of plates, boxes, racks and other complex parts of the rough and finish machining, the machine tool can achieve vertical boring and milling head transverse (Y axis), vertical movement (Z axis) and table longitudinal movement (X axis) of the three-axis linkage. Multi-process machining such as milling, boring, drilling, rigid tapping, reaming and countersinking can be performed.

Series Product Features:

1. The 450*450mm large cross-section fully contained square ram has strong rigidity and large output torque.

2. The beam and the horizontal sliding plate are equipped with rolling-sliding composite guide rails as standard, which is not only suitable for powerful cutting, but also has high precision.

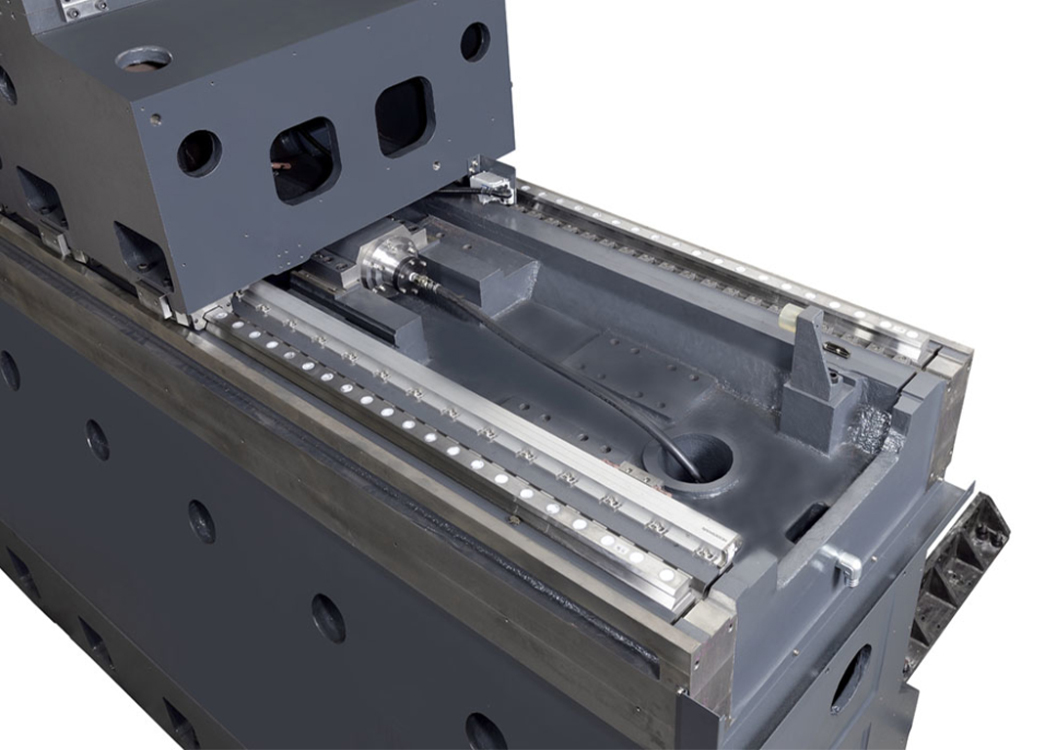

3. The beam lifting adopts a multi-point lifting positioning mechanism, which has high and stable beam precision and is suitable for processing parts of different heights; the double servo synchronous control of the beam lifting is optional, with high beam positioning accuracy.

4. The Z-axis movement adopts the transmission form of double motors and double ball screws, and is controlled by the synchronous axis function of the numerical control system, which makes the movement more stable and the dynamic performance better.

5. The optimally designed bed adopts heavy-duty roller linear guide rail, which has strong rigidity and good dynamic performance.
